Through bolt to existing pilings for side mounting 4-Post top beams.
LIFTS
Golden® : BOAT HOUSE LIFTS

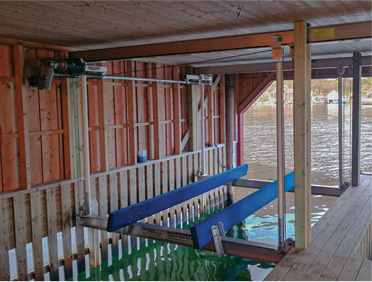

Boat houses provide the ultimate defense against environmental extremes: sun, heat, dirt, rain and UV rays. However that does not stop the barnacles, algae, and other nuisances from affecting an idle boat stored in the water. By installing a Golden Boat House Lift, not only will it reduce the maintenance on your boat, it will also maintain a showroom appearance and run faster with increased fuel savings. Golden manufactures several styles of boat house lifts, capacities range from 6,000# to 24,000#.
WHEN IT’S DONE RIGHT, IT’S GOLDEN. WHEN IT’S DONE RIGHT, IT’S GOLDEN.
Golden®: BOAT HOUSE LIFTS

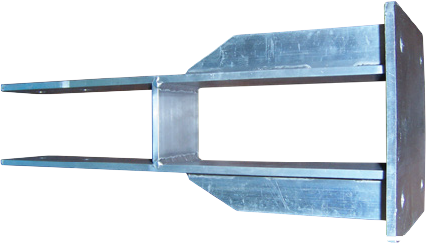

Side Mount Bracket

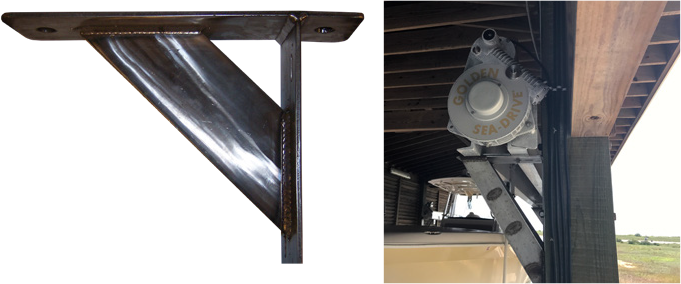

Stringer Bracket
Designed to support a boathouse roof built on top of a post lift.
Single Drive with I-Beams
8K capacity can be used when additional structure is required to support the lift load.

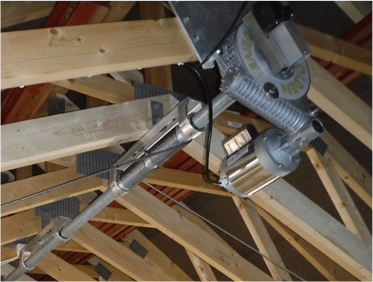

Single Center Drive Pipe
Easily installed in existing pitch roof trusses or straight joists.
(6,000 lb max capacity)
CAPACITY
One Motor & Drive
- 6,000 Lbs. Single Center Drive
- 8,000 Lbs. Single Drive with I-Beams
Two Motors & Drives
- 7,500 Lbs.
- 10,000 Lbs.
- 14,000 Lbs.
- 16,000 Lbs.
Four Motors & Drives
- 20,000 Lbs.
- 24,000 Lbs.
FEATURES
- Stainless Steel Motors
- All Aluminum Structure
- 300 series Stainless Steel hardware and cables.
- Maximizes slip width
- Easily installed in existing boat houses
- 1, 2, or 4 motor configurations
- Various styles to accommodate any boathouse structure.
- Capacities up to 24,000 Lbs
